Lionel mth-50-1001

DIGITAL COMMAND REMOTE CONTROL SYSTEM



  • DCS is a system for controlling your entire layout
  • multiple sound-equipped engines, switches, and accessories from one or more wireless handheld controllers.
  • DCS is compatible with all M.T.H. Proto-Sound 2.0- or 3.0- equipped locomotives.
  • In O gauge, it is also compatible with locomotives equipped with Lionel TMCC and Legacy,
  • as well as conventional AC-powered engines.

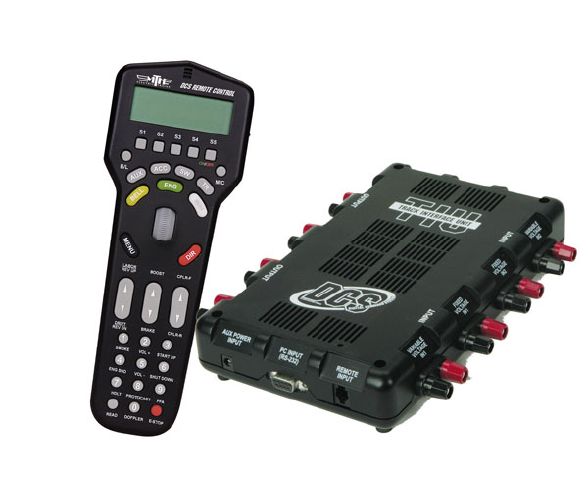

  • Features Wireless Remote Handheld
  • MICROPHONE - Broadcast your voice from a locomotive with Proto-Dispatch
  • LCD DISPLAY
  • SOFTKEYS - Activatelocomotive features
  • MIC - Turns Proto-Dispatch on & off
  • TR - Track menu (Access various tracks / blocks on your layout,for conventional AC mode)
  • START UP - Plays engine startup sequence, activates sound, smoke, and lights
  • Programming Port - For attaching tether between remote and TIU for programming new software features
  • SW - Switch menu (turnout control)
  • CPLR-F/CPLR-R Fires front & rear couplers
  • THUMBWHEEL - Throttle & selection (scroll & press) tool DIR - Changes locomotive direction
  • W/H - Blows whistle/horn
  • DIR - Changes locomotive direction
  • DOPPLER - Activates
  • Proto-Doppler
  • E-STOP - Emergency Stop cuts power to all tracks
  • PFA - Activates
  • Passenger Station/Freight Yard Sounds
  • SHUT DOWN - Plays engine shut down sequence, turns off sound, smoke, and lights
  • START UP - Plays engine startup sequence, activates sound, smoke, and lights
  • Programming Port - For attaching tether between remote and TIU for programming new software features
  • B/L - Screen backlight on/off
  • ACC - Accessory menu
  • BELL - Rings bell
  • ENG - Engine menu (to select and control engines)
  • MENU - Access 4 main menus: Sound, Control, System, Advanced
  • LABOR/REV UP OR DRIFT/REV DN Makes an engine sound like it's working harder (labored steam chuff or higher revving diesel) or easier (drifting chuff or lower revving diesel)
  • BOOST/BRAKE Temporarily Raises or Lowers Speed
  • SMOKE - Turns smoke unit on & off
  • VOL+ - Globally increases all sounds
  • VOL - Globally decreases all sounds
  • ENG SND - Silences engine sounds
  • HDLT - Turns headlights on & off
  • PROTOCAST - Activates Proto-Cast for playing external music or sound effects through an engine
  • READ - Search for TIUs, AIUs and Proto-Sound 2.0 or 3.0 engines on the track
  • TIU-Track Interface Unit
  • Proto-Cast (Audio) Connect any audio source using optional mini-to-mini cable (50-1009) and broadcast through engine
  • OUTPUTS Two channels constantvoltage DCS command power (AC or DC) Two channels conventional (variable voltage) or DCS command power (AC only)
  • Proto-Dispatch (input for optional auxiliary microphone)
  • AIU Input
  • FIXED INPUTS up to two AC or DC transformers
  • VARIABLE INPUTS up to two additional AC transformers
  • Remote Input for programming new software features
  • Serial Interface (RS-232)
  • Aux Power Input
